A Ground-Breaking Hotel Concept with a Modern Design

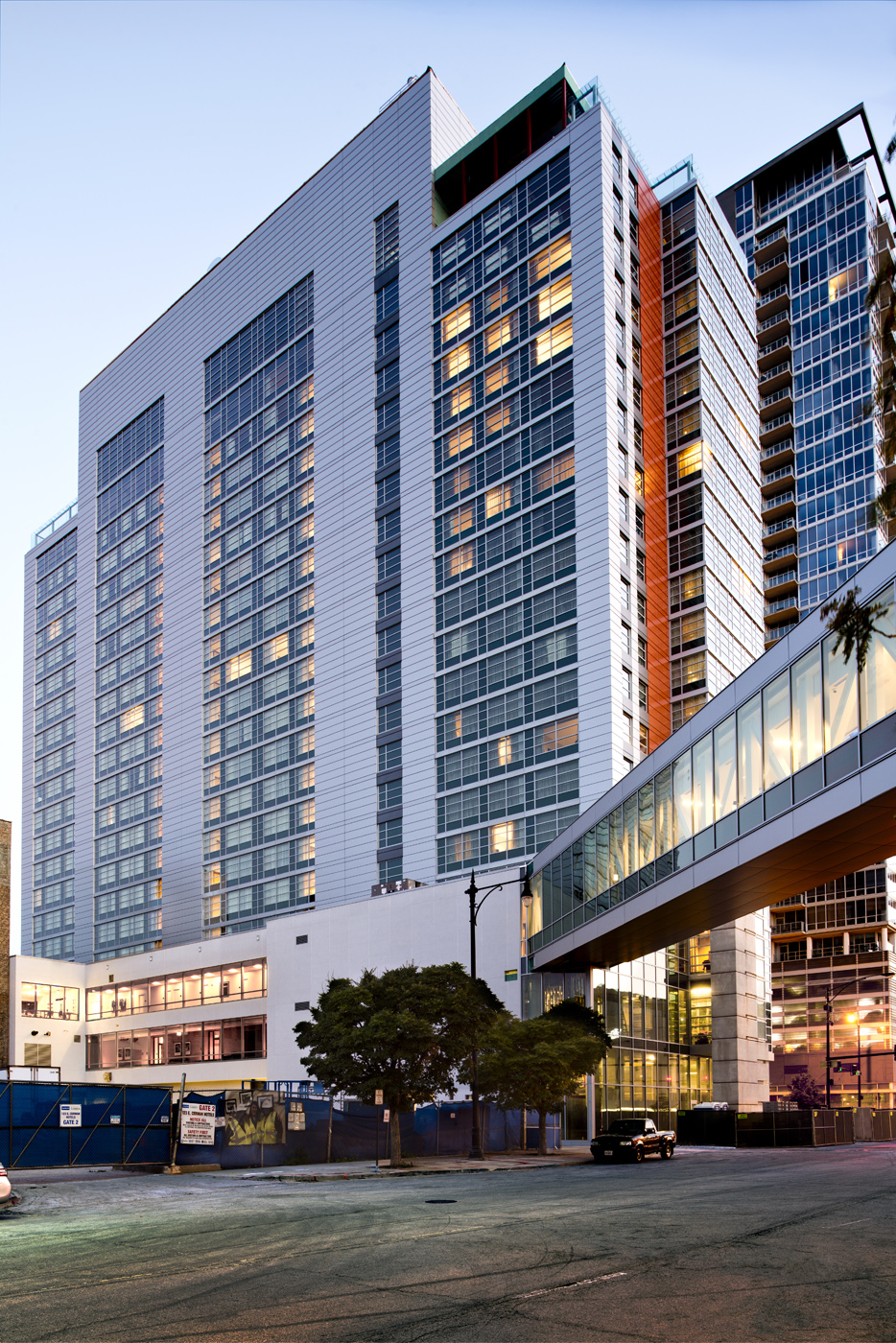

123 East Cermak Hotels is a 23-story hotel building in Chicago's South Loop neighborhood. It's home to three Hilton-family hotels – a Hampton Inn, a Hilton Garden Inn and a Home2Suites. It's the first time Hilton has had three of its hotels in a single building. The 351,987-square-foot building has 466 guest rooms, four restaurants, an indoor pool and 7,000 square feet of meeting space.
The building's modern design features more than 35,500 square-feet of Kingspan BENCHMARK Designwall 2000 Architectural Wall Panels. The design called for custom-width panels, as well as custom joint reveals. The typical reveal for an insulated metal panel (IMP) is 1/2-inch, but the design for 123 East Cermak called for a 2-inch reveal. This custom detail adds an interesting design element as the light and shadows change throughout the day, as well as the seasons.
Meeting the Unique Needs of the Contractor
Kingspan worked closely with the contractor to create a special bundling and packaging system for the project. The panels were produced and released by elevation as the installer, All American Exterior Solutions, worked its way up the building. The panels were created and packaged at Kingspan's Columbus, Ohio manufacturing facility, then delivered to Chicago when needed. Because the jobsite was in a tight downtown space, multiple deliveries had to be scheduled to load the jobs for one-to-two weeks’ worth of panels.
Specifying Panels
More than 2,100 Kingspan BENCHMARK Designwall 2000 panels were used on the project. All of the panels were specified to be custom-width, and more than 400 panels have transverse bends. Trimless ends were also incorporated to add a unique architectural dynamic. The color scheme includes panels in Silversmith, Medium Gray and Clay – all custom coatings from Valspar. The panels are all 3-inches thick to provide a superior R-value, especially important during Chicago’s frigid winters. Metal panels were also incorporated into the design of a sky bridge that connects the hotels to one of the buildings at McCormick Place, the largest convention center in North America.
For more information on this project, visit
LOCATION
Chicago, IL
CONTRACTOR
James McHugh Construction Co.
MANUFACTURER
Kingspan Insulated Panels, Sherwin-Williams
