Georgia cold storage facility maximizes energy efficiency, thermal performance

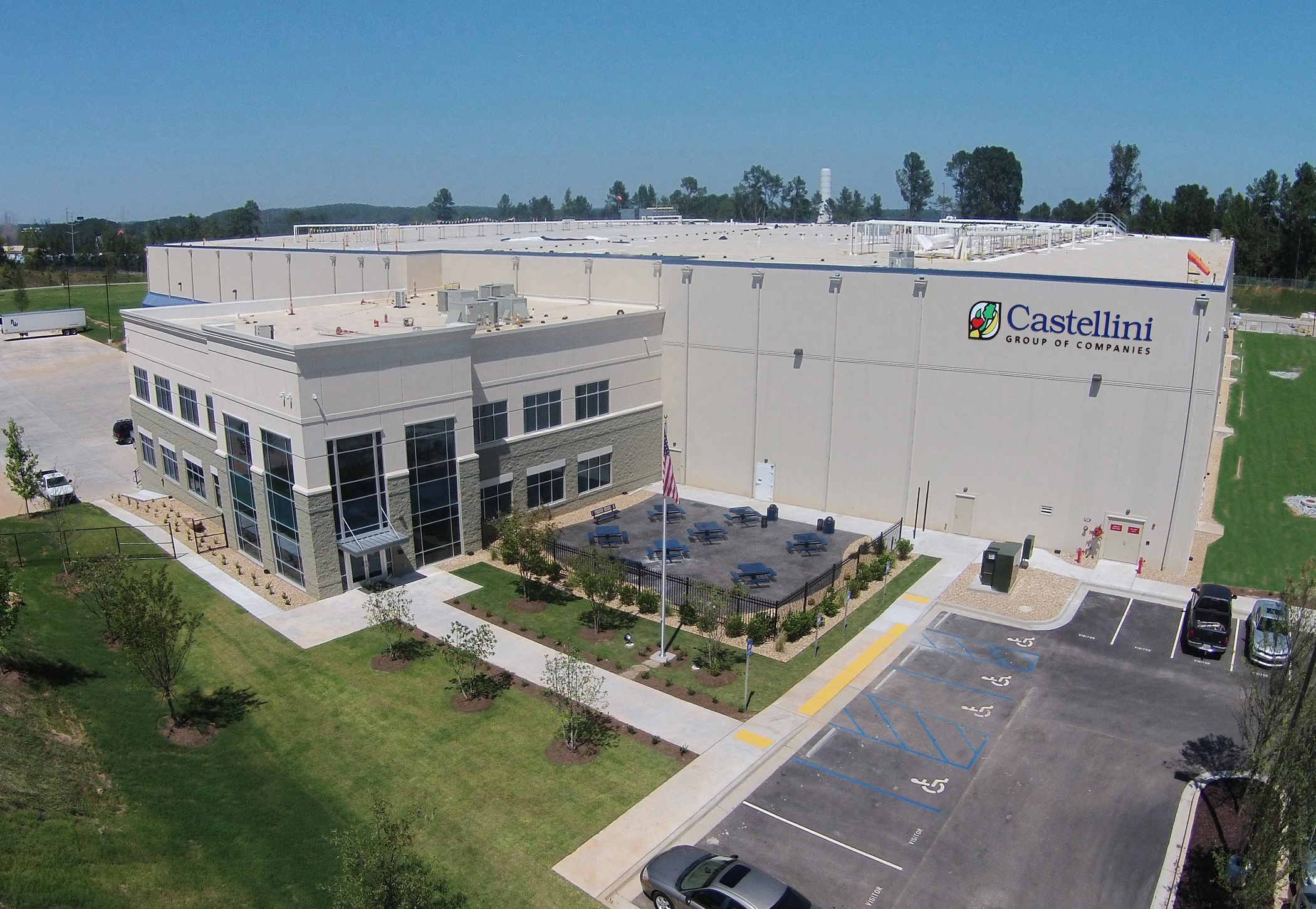

LEWISVILLE, Texas, March 14, 2017 – The new, state-of-the-art Atlantic Healthy Foods refrigerated produce processing and distribution facility will serve as the southeastern operations hub for wholesale foods provider Castellini Group, one of the nation's largest distributors of fresh produce. The LEED®-certified project, located just south of Atlanta in Conley, Ga., encompasses both temperature-controlled warehouse space and an additional 15,000 square feet of office facilities.
Facing a fast-track construction schedule, the 180,000-square-foot Atlantic Healthy Foods facility was no small undertaking for Tippmann Construction Inc. of Fort Wayne, Ind. In an effort to meet the project’s demanding performance requirements, Senior Project Estimator Dan Budzon relied on more than 230,000 square feet of Metl-Span's 4-inch, 26-gauge insulated metal panels (IMPs) in a combination of colors and profiles, including Mesa, Flute and ThermalSafe.
According to Budzon, IMPs offer the most bang for your buck when it comes to cold storage projects. Specifically, Metl-Span's panels achieve high R-values in a single-component, lightweight system with minimal thickness as compared to other insulation methods. Budzon and his team at Tippmann Construction specialize in cold storage projects, but their knowledge and expertise go beyond design and construction. The Tippmann Group is also a proud owner and operator of more than 100 million cubic feet of refrigerated warehouse space.
"There are other options out there, but insulated metal wall panels are the preferred product in this industry," Budzon says. "The factors at play are maximum thermal performance and energy efficiency, and finding the right building product to meet those standards."
The Metl-Span CF Mesa and Flute wall panels utilize a factory foamed-in-place polyurethane core paired with impermeable steel exterior and interior faces, ensuring high insulating values throughout the lifecycle of the building. The product's unique foam core allows the R-value insulation performance to increase as the core temperature of the panel decreases. This feature is attributed to the blowing agent used in the production of Metl-Span CF IMPs.
Additionally, the 4-inch ThermalSafe panel used is constructed from mineral wool lamellas and delivers a one-hour fire barrier rating. In addition to its fire resistance characteristics, the panel provides thermal performance and protection from the elements.
This design uniquely leveraged over 5,000 square feet of ThermalSafe panels located in the main stairwells. The feature provides another layer of protection and safety to the employees through the one-hour fire resistance rating in the case of an emergency.
In addition to thermal performance, the single-component panels contribute to economic efficiency goals by minimizing structural support and equipment costs thanks to their lightweight nature. The IMPs can also be installed in a single step, ensuring rapid completion of the construction process when compared to traditional build-up methods.
Metl-Span CF wall panels can be installed vertically or horizontally with concealed clips and fasteners in the side joint. The double tongue-and-groove joinery allows for simple integration of multiple profiles, which played a factor in Budzon's specification process. Budzon also cited structural integrity as an important aspect to IMPs like Metl-Span's product line.
"One of the reasons we like the Metl-Span product is its interlocking capabilities," Budzon notes. "It lends itself to quick and easy installation and faster close-in."

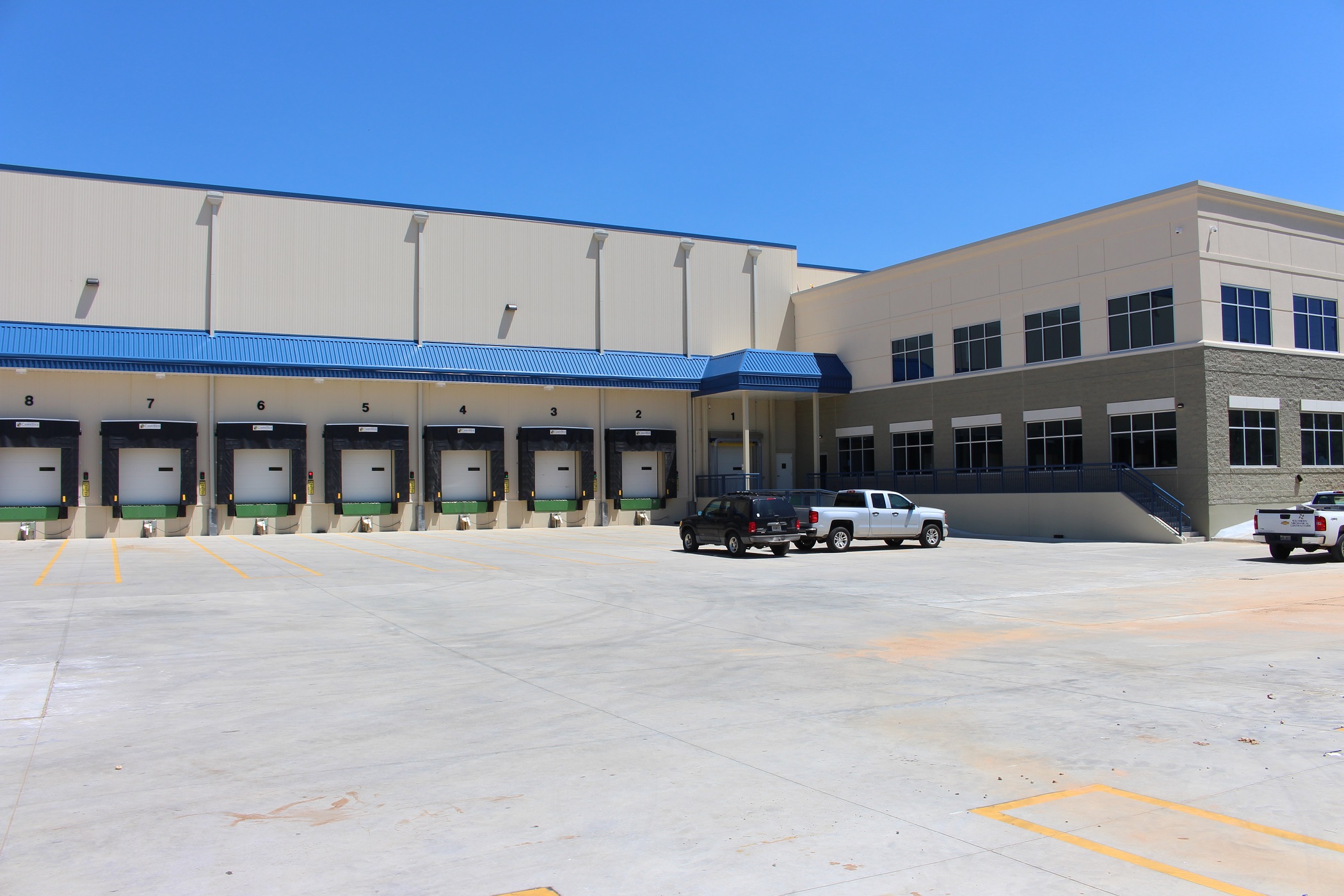

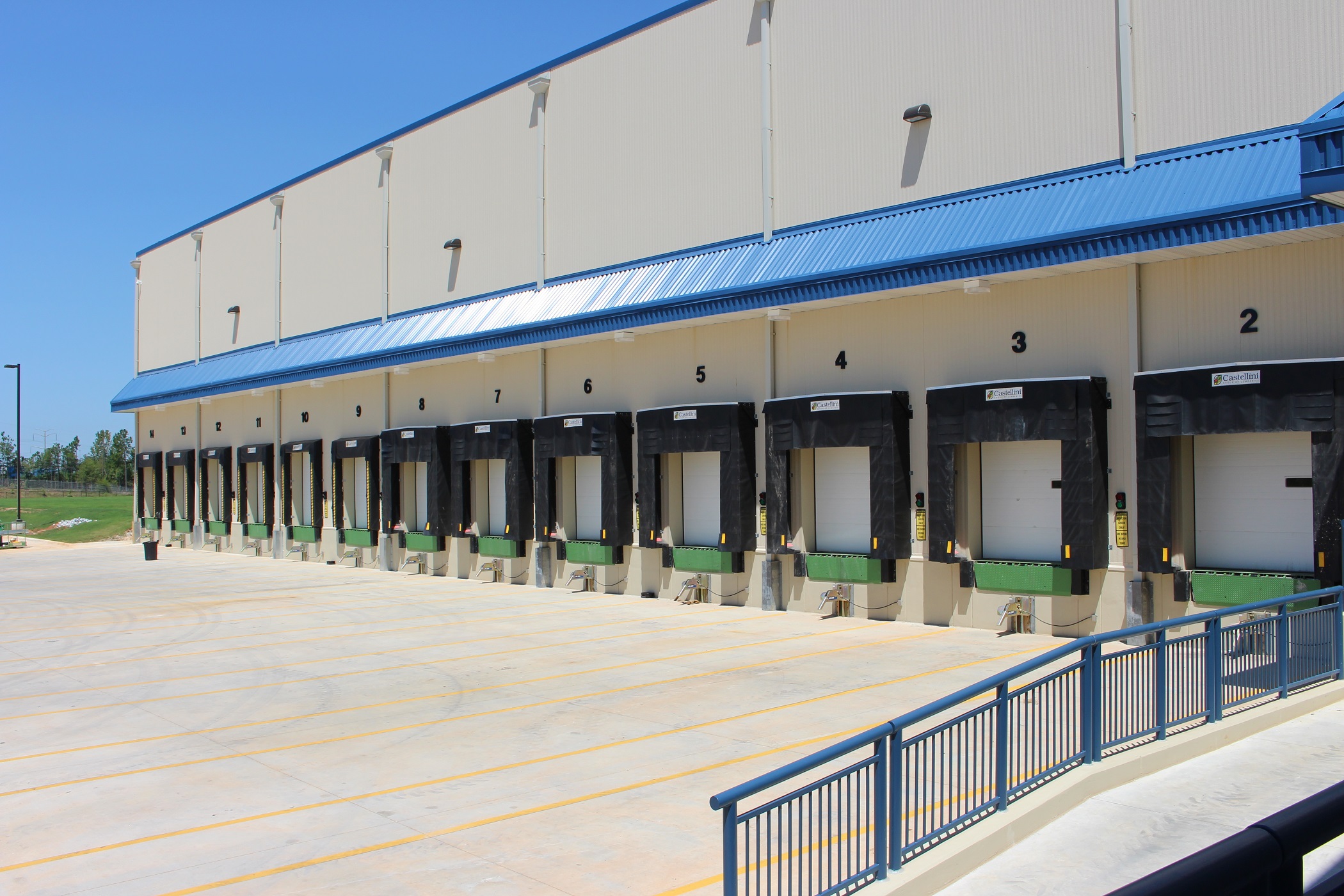

The Atlantic Healthy Foods warehouse showcases a combination of Metl-Span CF wall panels in Mesa and Flute profiles. The bold lines of CF Flute provide an attractive exterior to industrial projects, including temperature-regulated facilities, while the CF Mesa profile features a lightly corrugated aesthetic to carry flawless symmetry from facade to facade, or room to room on the exposed interior face. Designers relied primarily on the subtle Light Stone color in a siliconized polyestercoating for the exterior building envelope. Metl-Span's standard interior color, Igloo White, presents a clean, austere aesthetic—ideal for cold storage facilities.
Atlantic Healthy Foods opened its doors in the spring of 2016, representing the Castellini Group's first expansion into the southeastern U.S. market.
LOCATION
4322 Moreland Ave, Conley, GA
CONTRACTOR
Tippmann Construction, Fort Wayne, Ind.
MANUFACTURER
Metl-Span
DATE COMPLETED
April 2016
